imes-icore CORiTEC® 350i Series

imes-icore CORiTEC® 350i Series

imes-icore

CORiTEC® 350i Series

Automated All-in-One Milling Solution

The CORiTEC 350i series is an innovative machine concept that meets all the requirements of the modern CAD/CAM process. The extremely stable construction enables the processing of a variety of materials in wet and dry milling. Optional with fully automatic 12-position blank changer, these mills enable versatile machining in 24-hour operation. Their zero-point clamping system offers maximum flexibility for a wide range of applications.

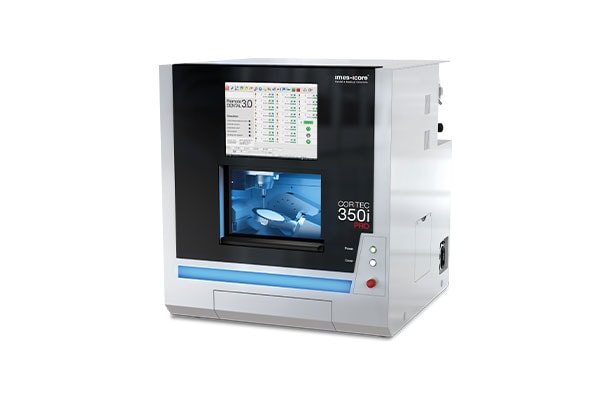

CORiTEC 350i PRO

CORiTEC 350i PRO

5-axis dental milling machine, dry and wet processing, polymer concrete

CORiTEC 350i PRO+

CORiTEC 350i PRO+

5-axis milling machine including wet processing, polymer concrete, water cooled spindle

CORiTEC 350i Loader PRO

CORiTEC 350i Loader PRO

5-axis dental milling machine, wet-processing, polymer concrete, blank changer

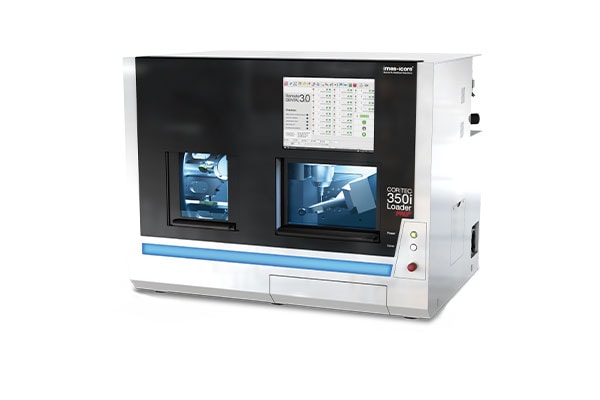

CORiTEC 350i Loader PRO+

CORiTEC 350i Loader PRO+

5-axis dental milling machine including wet processing, blank changer, 60Hz, water cooled spindle


Indications:

  • Zirconia
  • Pre-milled Abutment (Ti)
  • Pre-milled Abutment (CoCr)
  • Cobalt-chrome
  • Glass ceramic
  • Lithium disilicate
  • Hybrid ceramic
  • Sintered metal
  • Composite
  • PEEK
  • PMMA
  • Wax

Compare Mills:

CORiTEC 350i PRO CORiTEC 350i Loader PRO CORiTEC 350i PRO+ CORiTEC 350i Loader PRO+
Motor technology Servo with absolute encoder
Resolution 0.15 µm
Base structure Polymer concrete, steel rails
Screen 15" HD touchscreen
Housing Shiny design, LED illumination
Fully automatic workpiece blank changer Manual 12-fold Manual 12-fold
Blank changer inclusive 2 8 2 8
Absolute measurement systems in all axes
Spindle power 1.0 kW 1.0 kW 2.6 kW 2.6 kW
Spindle bearing Two hybrid bearings Three hybrid bearings
Collet 6 mm 6 mm (self-cleaning)
Zero point clamping system
Cooling system spindle Air cooled Water cooling system
