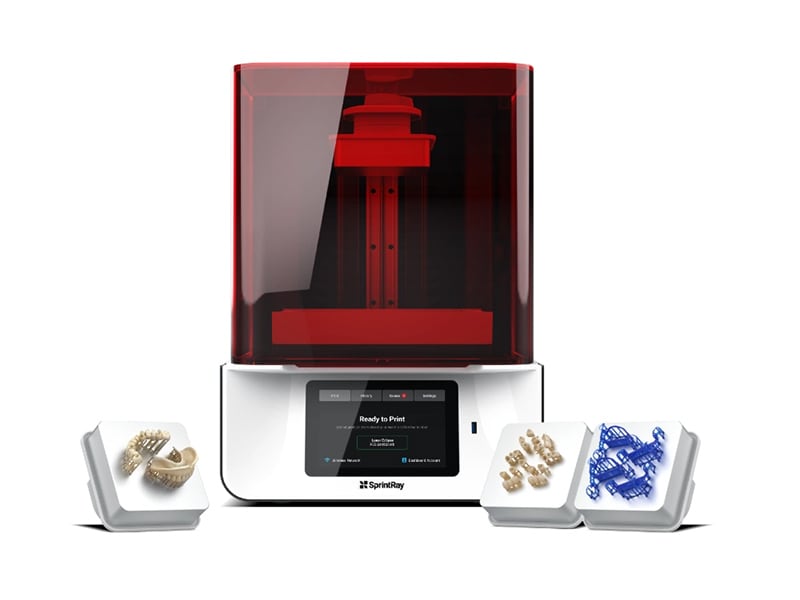

SprintRay Pro 55 Dental 3D Printer

SprintRay Pro 55 Dental 3D Printer

SprintRay Pro 55 Dental 3D Printer

SprintRay Pro 55 Dental 3D Printer

SprintRay Pro 55 Dental 3D Printer

Incredible precision for restorative appliances

A 55-micron XY pixel size and Pixel Toning brings industry-leading accuracy to Pro 55, making it perfect for jobs that require razor-thin margins such as temporary and definitive crowns, hybrid dentures, and more. Pro 55 is the ideal printer for dental laboratories that specialize in restorative applications, reducing treatment cost and delivery times while improving your workflow.

Uses and Advantages:

  • Temporary and Definitive Crowns
  • Hybrid Dentures
  • Surgical Guides
  • Cast Applications

Technical Documents:

SprintRay Pro 3d Printer Brochure

Compare the Pro 3D Printer Technical Specs
Model Pro95 Model Pro55
Printing Technology Digital Light Processing (DLP)
Direct Peel Mechanism
Manual Resin Filling
Easily Removable Supports
Print Volume 7.1" x 4" x 8" 18.2cm x 10.2cm x 20cm 4.1" x 2.3" x 8" 10.5cm x 5.9cm x 20cm
Layer Thickness Options 50 Microns, 100 Microns, 170 Microns
Minimum Feature Size 95 Microns 55 Microns
Print Speed up to 2 in/hour @ 100 Microns
1 in/hour @ 50 Microns
Resin Curing Unit SprintRay Custom-Built 1080P FHD Projector
Texas Instruments DLP Chip
405nm LED
LED-based Light Source
50,000 Hours Expected Lifetime
Resin Tank 500 mL Capacity
Vacuum Formed Protective Cover
Up to 50 Liters Extended Lifetime
Connectivity 5GHz Wi-Fi Chipset
Direct Ad-Hoc Mode via Wi-Fi b/g/n
Local Network via Wi-Fi b/g/n
Local Network via Ethernet Cable
Printer Control 7" Touchscreen with Direct Print via USB Port
Printer Unit Dimensions W x D x H
14" x 16" x 20"
35cm x 40cm x 50cm
W x D x H (When Open)
14" x 20" x 24"
35cm x 50cm x 61cm
Shipping Size & Weight 20" x 20" x 22" - 40 lb
53cm x 53cm x 58cm - 18 kg
