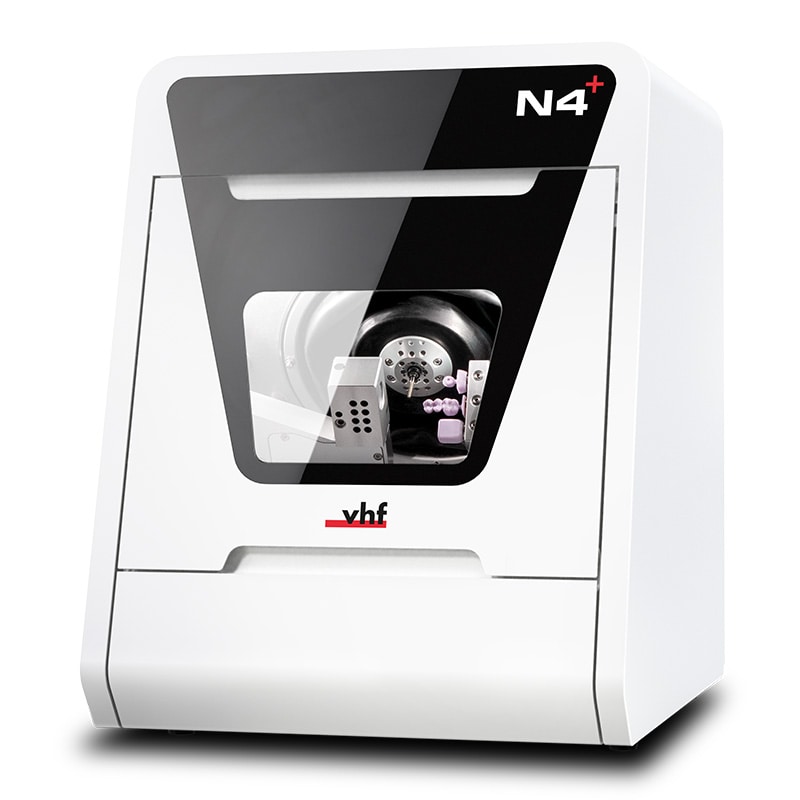

vhf N4+

Wet Grinding and Milling with a Plus

Visibly different, noticeable better: with water–cooled spindle.

The N4+ is an efficient wet processing machine for grinding and milling glass ceramic, composite, and zircon blocks, as well as CoCr and titanium abutments. It impresses not only thanks to its high precision and fast drives, but also thanks to its ultra–compact housing with closed fluid circuit. Eight fine nozzles on the spindle direct the cooling liquid precisely onto the effective area between the tools and workpiece, delivering an optimal cooling effect. The N4+ also has plenty of power. The machine's spindle offers 800 watts of power, achieving up to 80,000 rpm. That allows for efficient wet processing of up to three blocks or prefabricated abutments.

  • 4–axes
  • Work on up to 3 blocks with 45 mm length at the same time
  • Automatic changer for 8 tools

Exceptional Precision

  • Restorations in Ultra HD
  • Premium spindle with four–fold ball bearing made of hybrid ceramic for the highest concentricity
  • 3 µm repetition accuracy
  • Modular machine design to optimize servicing and maintenance

Sophisticated Design

  • Spindle with water cooling for perfect results, even in continuous operation
  • Eight liquid nozzles for steady tool cooling
  • Highest rotational speeds of up to 80,000 rpm with 800 watts of power
  • Heavy industrial quality

Reliable

  • 100% developed and manufactured in Germany
  • 24 months warranty

Independence

  • Around 40 block materials from a great variety of manufacturers — with upward tendency
  • >1,300 implant platform for titanium and CoCr prefab abutments from different manufacturers
  • Ideal for labs and in–office labs

Cost–Effective

  • PUREWATER: no grinding additives necessary, except for titanium processing
  • Milling of screw channels — saves costs for meso blocks
  • Conveniently removable cooling liquid tank
  • Webcam in working chamber for remote monitoring and service
  • Ethernet interface for stable connection
  • Very easy operation via DENTALCAM software with DIRECTMILL Function — included in scope of delivery and without license fee
