Medela Healthcare has over 50 years of experience in producing innovative and safe medical vacuum technology. All of our products are engineered and manufactured to quality you would expect of a Swiss company. Our products are used by doctors and healthcare professionals all over the world, enabling them to care for their patients in an effective and efficient way.

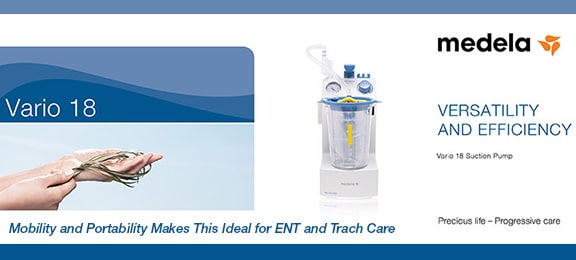

Vario 18

Vario 18

Features and Benefits:

AC(240-0021) | AC/DC (240-0022) | AC/DC C/I (Constant/Intermittent)
Quatro-Flex Technology Rapid vacuum build-up
Membrane Vacuum Regulator Accurate vacuum setting
Locking Dial Patient safety
Quiet, small & lightweight Unobtrusive and portable operation
Unobtrusive and portable operation Included at no charge
AC/DC Only (240-0022)
Battery Operate from wall, battery or a 12V car connection
Constant/Intermittent Affords options. Intermittent – 8 on – 4 off, 16 on – 8 off, 32 on – 16 off second intervals

Specifications:

High Vacuum -75kPa, -563mmHg
Low Flow 18 l/min
Weight 18 l/min
Dimensions 9.5" x 14.6" x 18.5" (shipping)
IPX1 Protection from dripping water
Vacuum Gauge kPa & mmHg
Warranty 2 Year limited warranty, 6 months for QuatroFlex & battery
AC/DC Only (240-0022)
Battery Charges during use
Battery Run Time Fully charged, 30 minutes
Battery Charge Warning Optical & Acoustic
Operates From Wall, Battery or 12V car adapter
AC/DC C/I
Battery Run Time Fully charged, 30 minutes
Battery Charge Warning Optical & Acoustic

Return to Top | Request for Demo | Order Medela Products

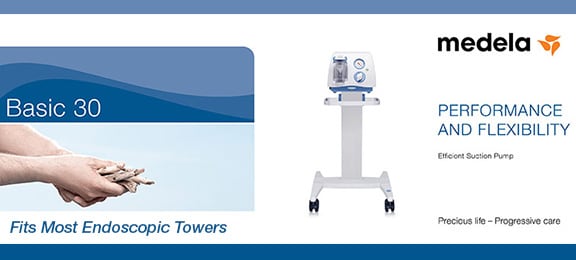

Basic 30

Basic 30

Features and Benefits:

Mobile with Cart(240-0023) | Portable(240-0024)
Piston/Cylinder Technology Rapid vacuum build-up
Membrane Vacuum Regulator Precise suction performance
Portable or Mobile Modality Greater flexibility
Portable Size Fits most endoscopy towers/systems
Drive System Quiet
Safety Set in Front Prevents overflow and contamination within pump
Design Based on years of research and experience

Specifications:

High Vacuum -85kPa, -638mmHg
High Flow 30 l/min
Power 100-120VAC, 110W, 60Hz
Weight - Pump 26.5 lbs.
Weight - Trolley 20.7 lbs.
Dimensions - Pump 16.5" x 15.8" x 12.6" (shipping)
Dimensions - Trolley 26.4" x 19.3" x 8.7" (shipping)
Protection Class II Without a protective earth. Double insulated to prevent electric shock.
Potential Equalization Conductor Maintains the difference in potential at 0, thus preventing any transfer of static electricity running through the patient.
IP21 Protection from dripping water
Vacuum Gauge kPa & mmHg
Warranty 5 Years

Return to Top | Request for Demo | Order Medela Products | Click Here for Basic 30 Basic Setup | Click Here for Brochure




Dominant 50

Dominant 50

Features and Benefits:

Mobile with Cart(240-0019) | Portable(240-0020)
Piston/Cylinder Technology Rapid vacuum build-up & quiet operation
Membrane Vacuum Regulator Precise suction performance
Portable or Mobile Models Greater flexibility
Drive System Quiet
Safety Set on Side Prevents overflow and contamination within pump
Design Based on years of research and experience
Suitable for suctioning of large quantities of fluids and liposuction Large volume collection & liposuction

Specifications:

High Vacuum -90kPa, -675mmHg
High Flow 50 l/min
Power 100-120VAC, 150W, 60Hz
Weight - Pump 29.3 lbs.
Weight - Trolley 20.7 lbs.
Dimensions - Pump 16.5" x 16.1" x 13.8" (shipping)
Dimensions - Trolley 26.4" x 19.3" x 8.7" (shipping)
Protection Class II Without a protective earth. Double insulated to prevent electric shock.
Potential Equalization Conductor Maintains the difference in potential at 0, thus preventing any transfer of static electricity running through the patient.
IP21 Protection from dripping water
Vacuum Gauge kPa & mmHg
Warranty 5 Years

Return to Top | Request for Demo | Order Medela Products | Click Here for Dominant 50 Basic Setup | Click Here for Brochure




Filtration: When aspirating materials (to draw or remove by suction), aerosols are produced that contain bacteria. These aerosols can contaminate, corrode, or deteriorate fittings, pipes, pumps and regulators. This equipment then becomes colonized with potentially pathogenic microorganisms that can both reduce vacuum efficiency and result in cross contamination (the passing of bacteria, microorganisms or other harmful substances indirectly from one patient to another through improper or unsterile equipment, procedures, or products).

Item # Description Image Uses UOM
116-5478 Disposable overflow protection/bacteria filter with Medela connections Prevents overflow and protects from bacteria 10 /Pkg

Return to Top | Request for Demo




Pump by Application

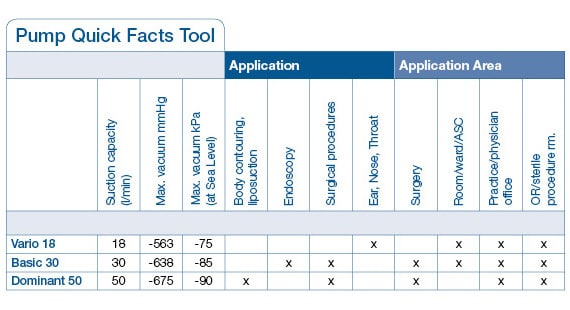

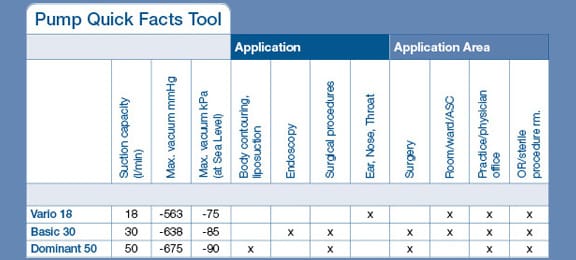

Pump Quick Facts Tool
